Folding Houses for Fast Temporary and Commercial Housing
Collapsible modular shelters designed for rapid assembly, compact transport, and dealer-ready inventory programs.
Why Buyers Choose Folding Houses
Fast Deployment

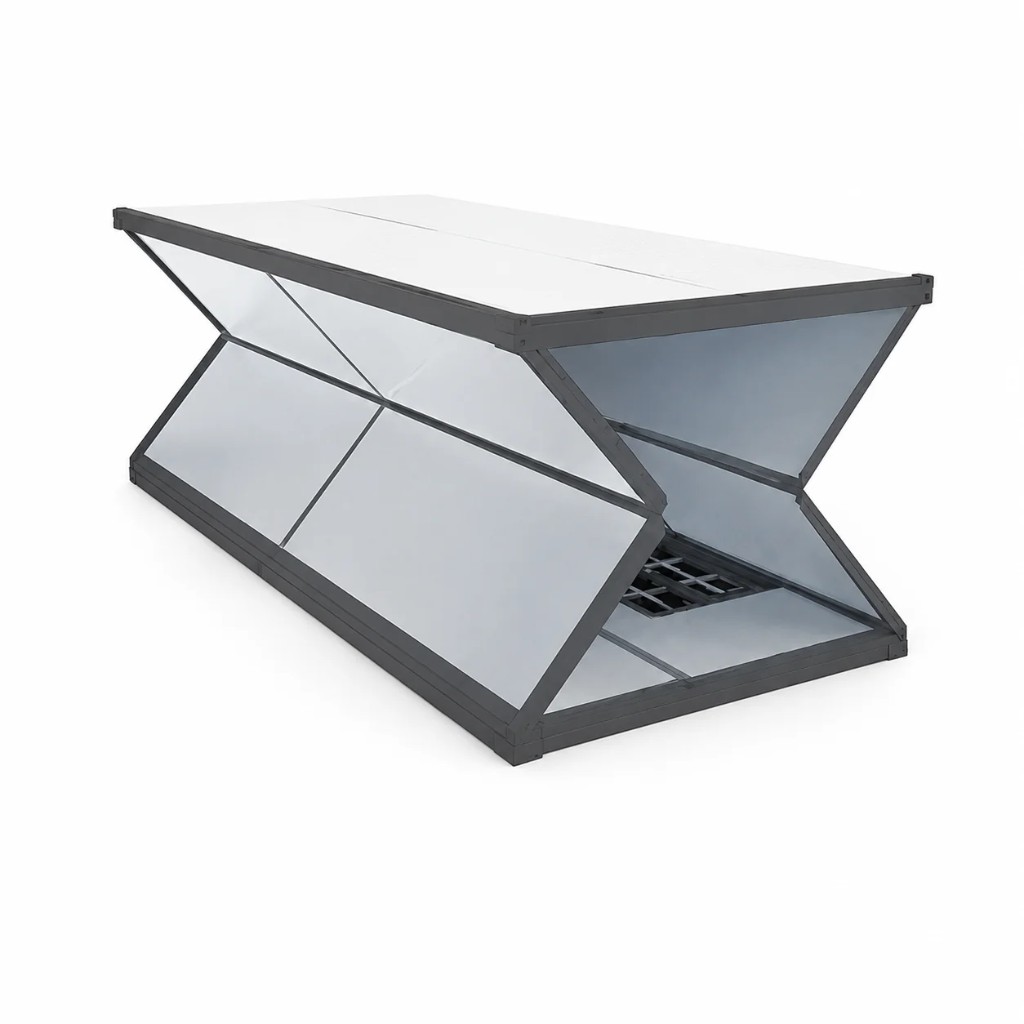

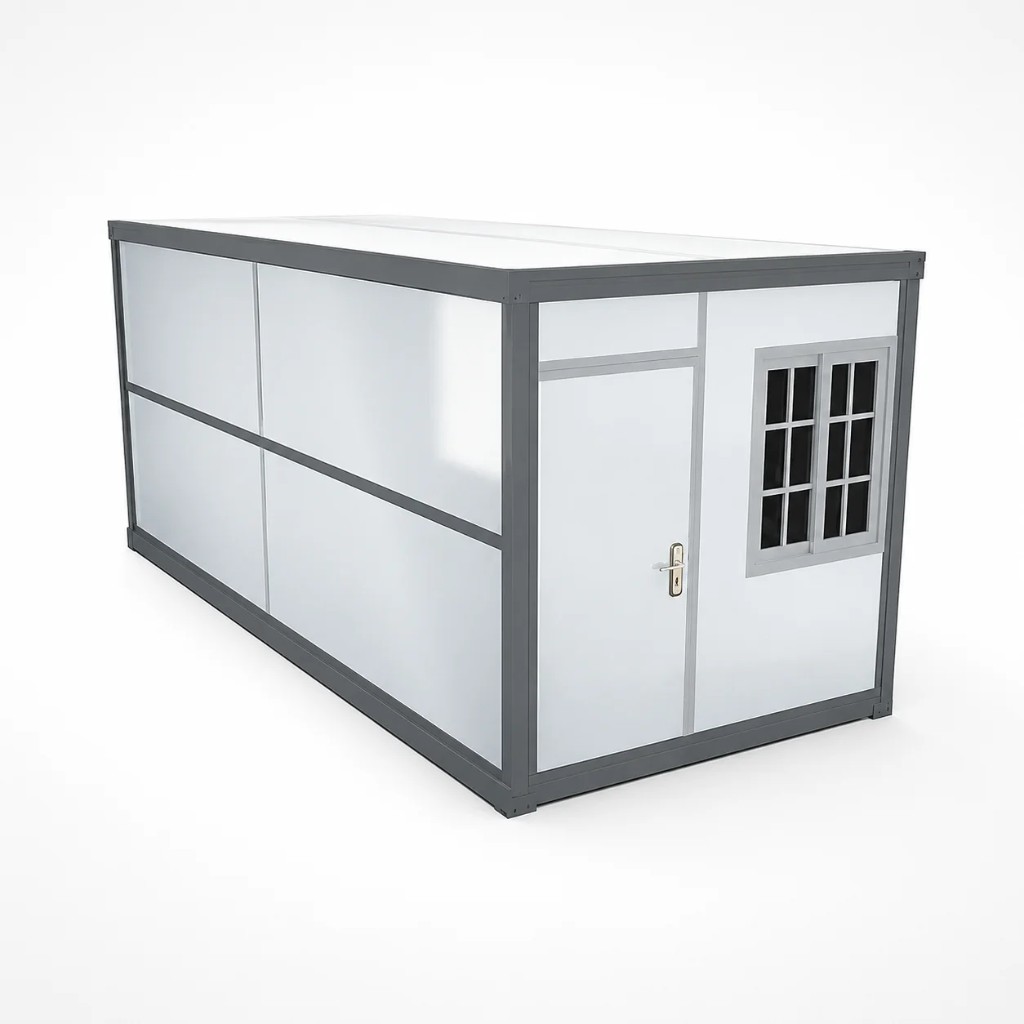

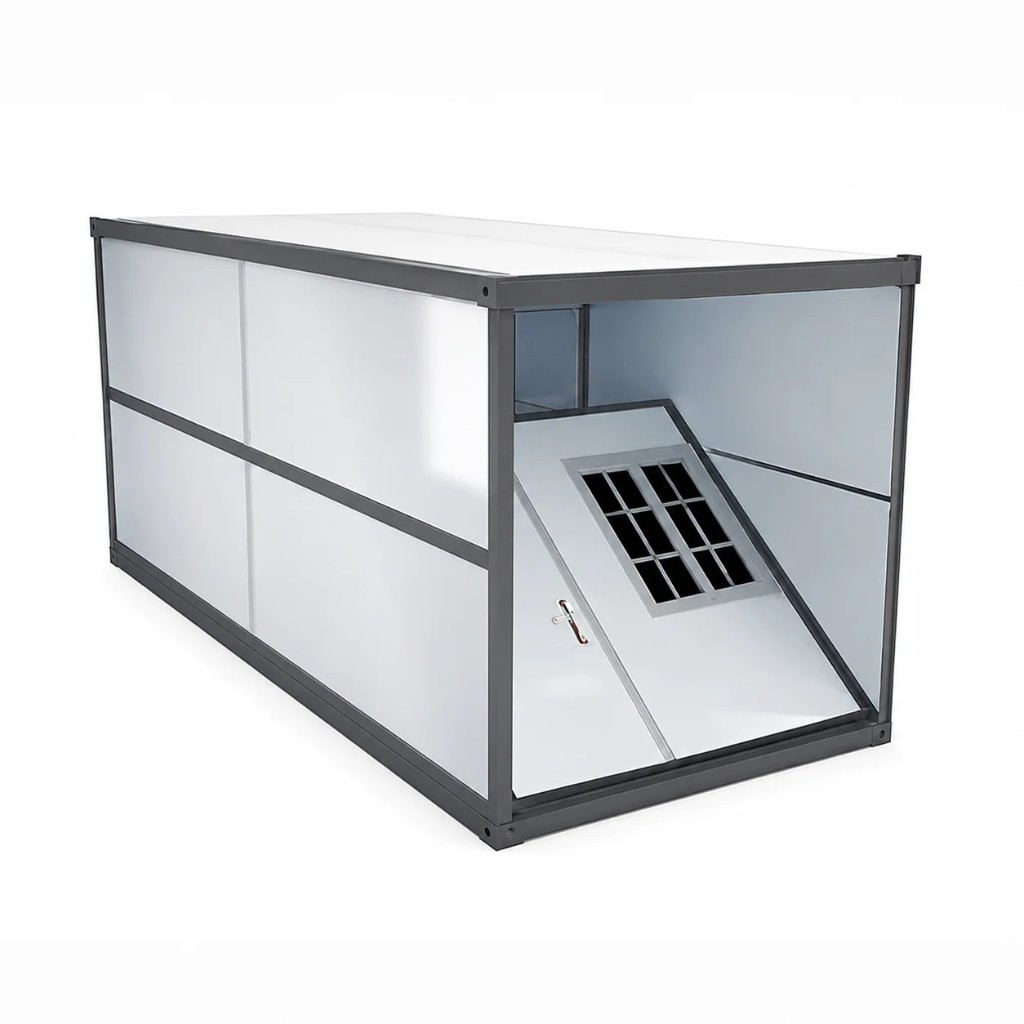

Installation is extremely simple, requiring just four steps to complete, which saves on labor costs.

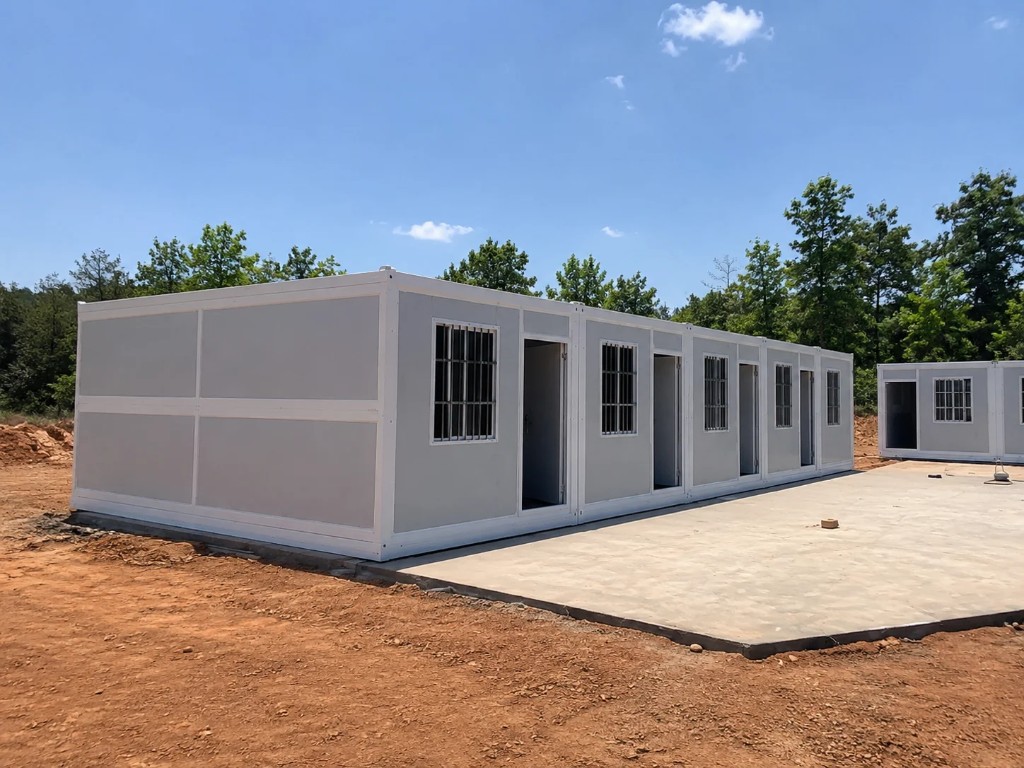

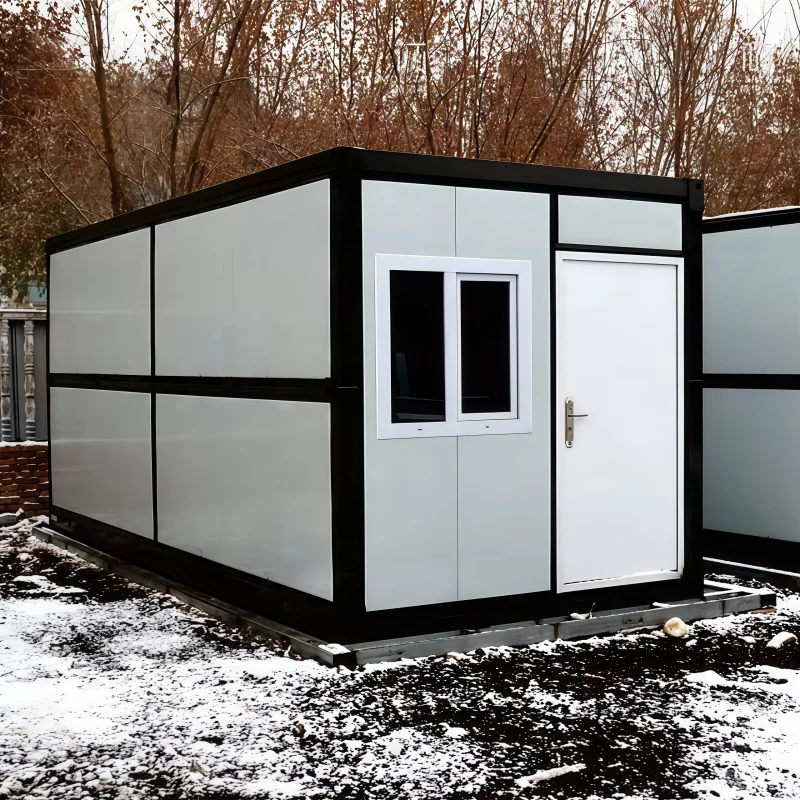

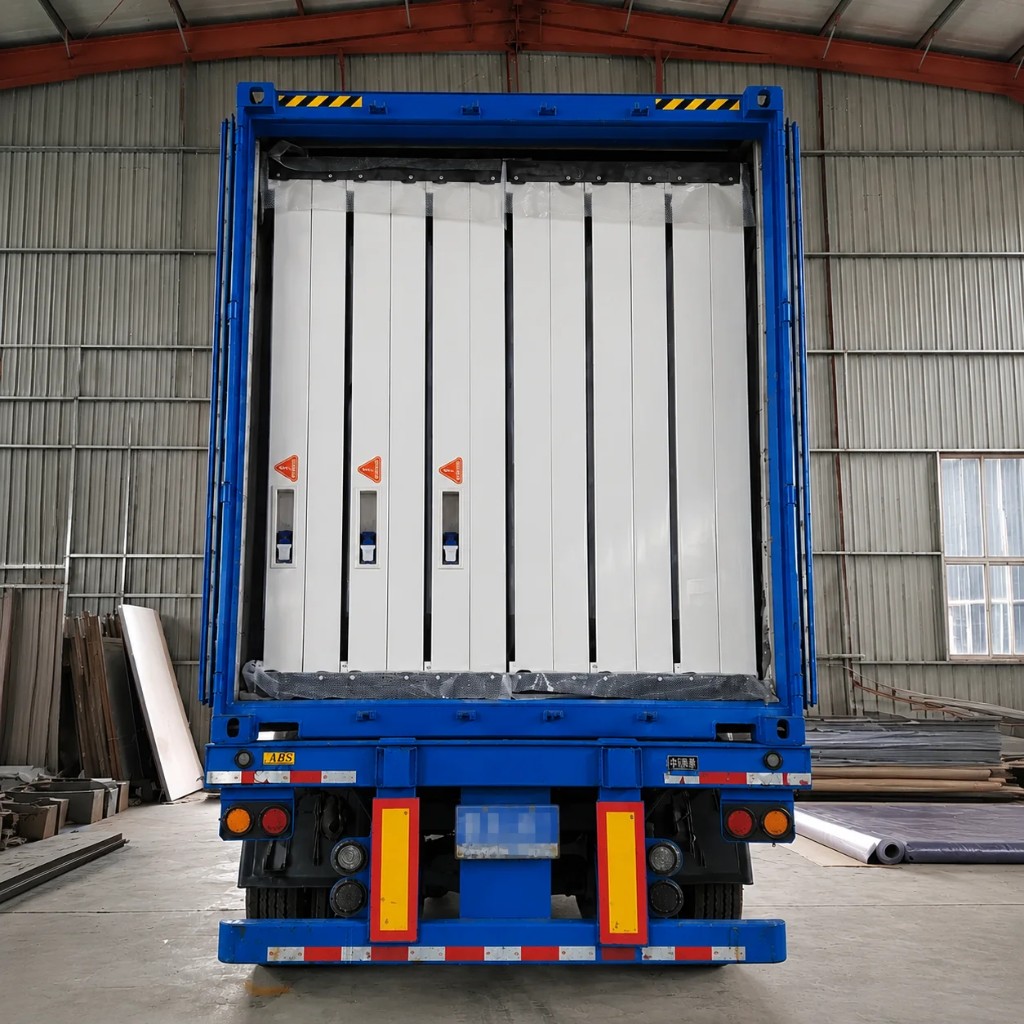

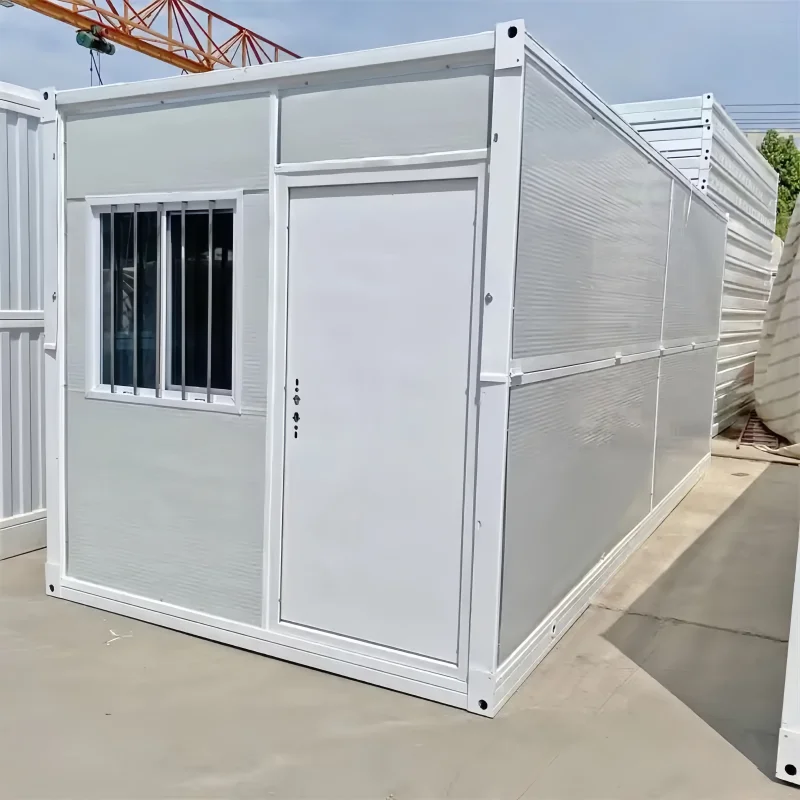

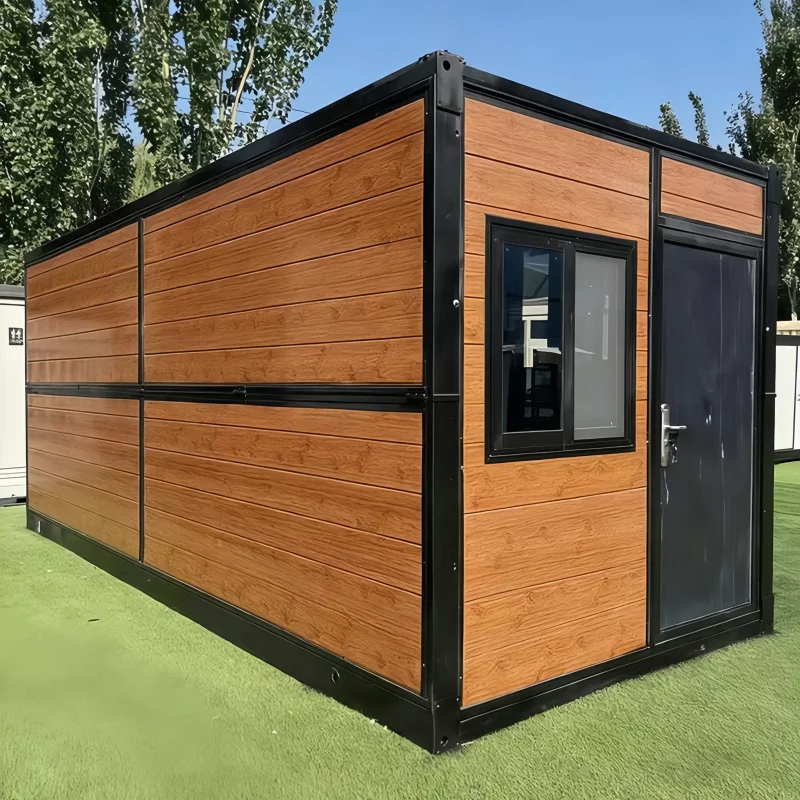

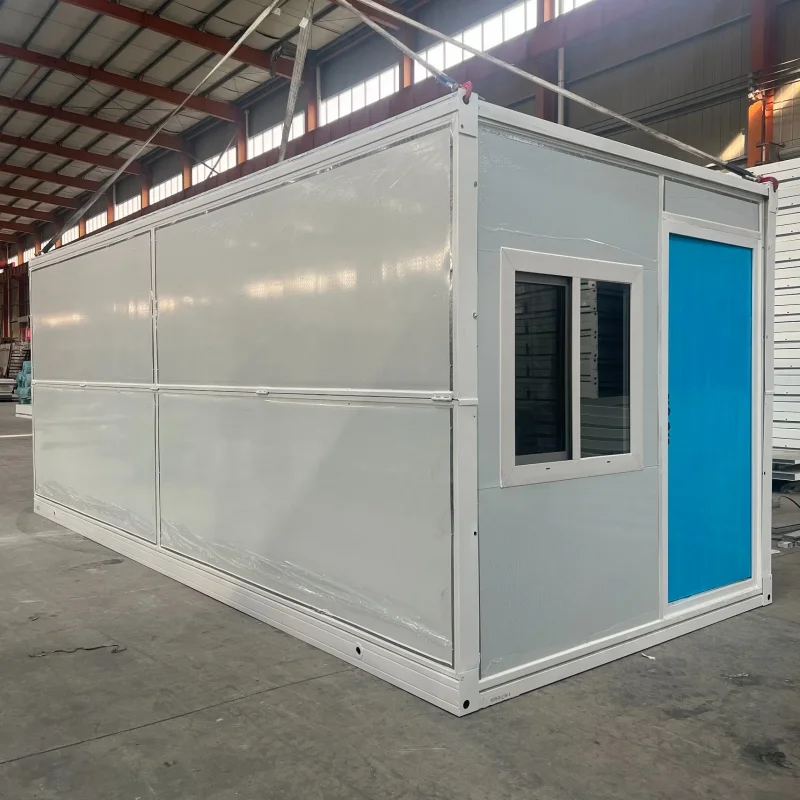

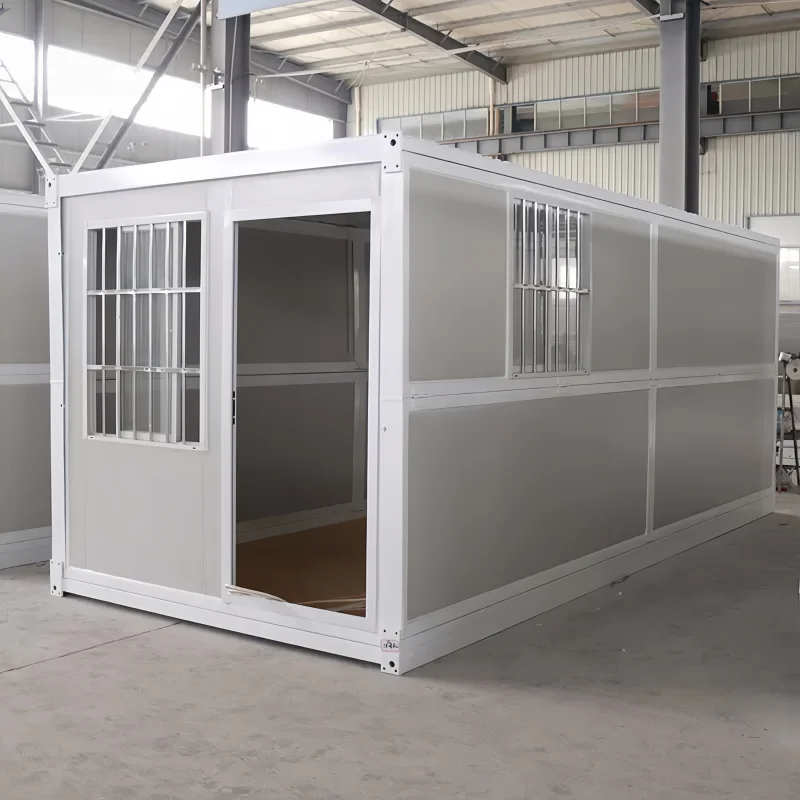

Actual product photo
Product Specifications
| Category | Item | Material / Spec | Model / Size | Thickness (mm) | Unit | Qty |
|---|---|---|---|---|---|---|
| Basic Features | External Dimensions (mm) | 5800×2460×2400 | ||||
| Internal Dimensions (mm) | 5680×2320×2380 | |||||

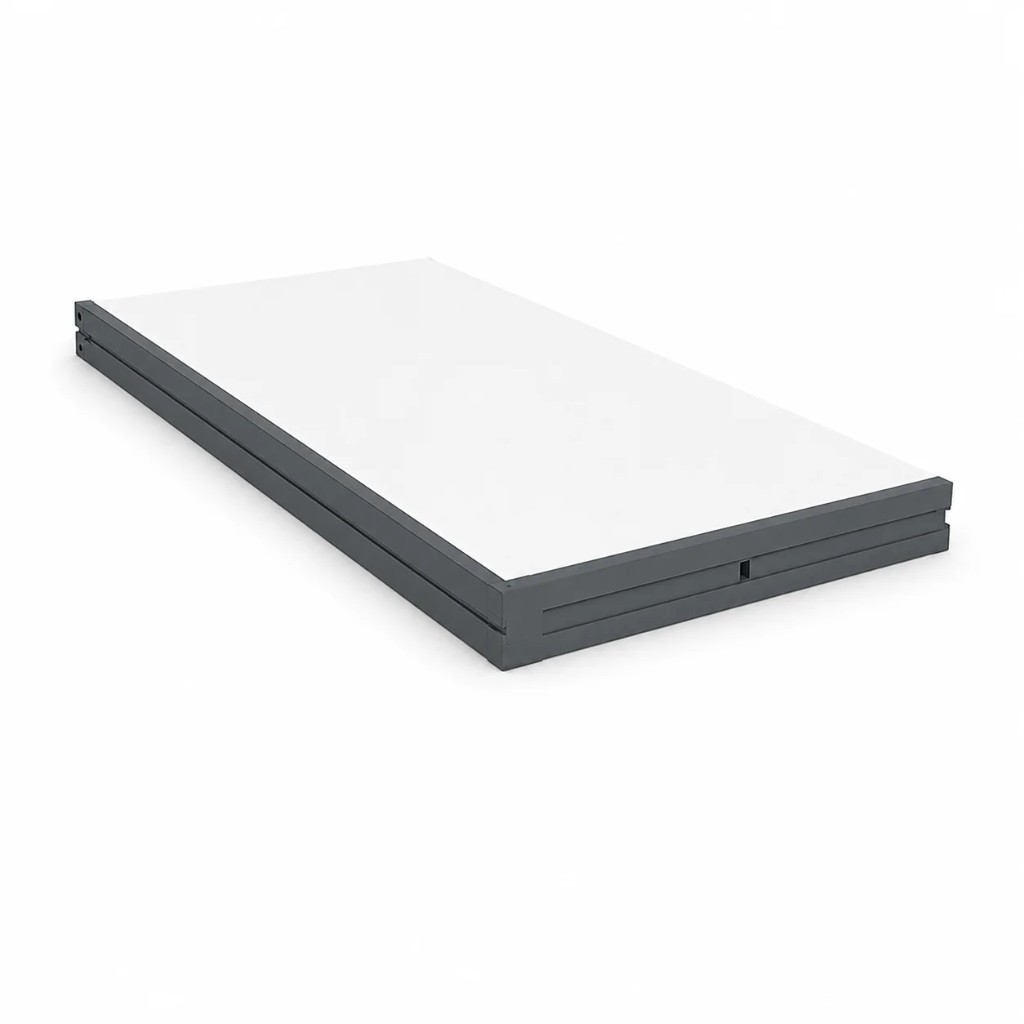

| Folded Dimensions (mm) | 5800×2460×320 | |||||
| Total Weight (kg) | 800 | |||||
| Frame Structure | Top Structure | Q235 galvanized square tube | 30×30×2320 | 1.2 | pcs | 5 |
| Special-shaped part | 1.2 | pcs | 2 | |||
| Galvanized square tube | 60×60×5800 | 1.2 | pcs | 2 | ||
| Angle iron | 2 | pcs | 2 | |||
| Color steel corrugated sheet | #900×831 | Outer 0.4 / Inner 0.2 | pcs | 12 | ||
| 5.8m Side | L-shaped steel plate | 1150 | 1.5 | pcs | 4 | |
| 1170 | 1.5 | pcs | 4 | |||
| Galvanized P-tube | 30×55×5800 | 1.2 | pcs | 8 | ||
| Galvanized P-tube | 1080mm | 1.2 | pcs | 8 | ||
| Galvanized hinge | High-strength | pcs | 34 | |||
| Wall panel | 1060mm | 0.27 | pcs | 8 | ||
| Special-shaped part | 1080mm | 0.4 | pcs | 8 | ||
| Galvanized fastening channel | 1080mm | 1.2 | pcs | 8 | ||
| D-type rubber strip | 5800 | pcs | 24 | |||
| 2.46m Side | Galvanized P-tube | 2430 | 1.2 | pcs | 4 | |
| 2310 | 1.2 | pcs | 4 | |||
| Galvanized fastening channel | 2450 | 1.3 | pcs | 1 | ||
| 980 | 1.3 | pcs | 1 | |||
| Wall panel | 950 | 0.27 | m | 9.66 | ||
| Galvanized angle | 50# | 1.3 | m | 20.41 | ||
| Window | 925×930 | pcs | 2 | |||
| Door | 970×1970 | Security door | pcs | 1 | ||
| Rubber strip | Dust-proof seal | m | 21.32 | |||
| Bottom Structure | Custom galvanized square tube | 60×120×5.8m | 1.5 | pcs | 2 | |
| 60×60×2320 | 1.5 | pcs | 2 | |||
| Hinge | High-strength | pcs | 4 | |||
| Q235B galvanized square tube | 40×40×2320 | 1.2 | pcs | 9 | ||
| Floor board | 1133×2338 | 15 | pcs | 5 | ||
| Roof | Full-frame coating | Electrostatic powder / matte white | ||||
| Wall Panels | 5.8m Side | 50mm sandwich panel 0.20mm + fire-retardant EPS (8kg) + 0.20mm | ||||
| 2.46m Side | 50mm sandwich panel 0.20mm + fire-retardant EPS (8kg) + 0.20mm | |||||
| Flooring | MgO floor (15mm) | |||||
| Electrical System | Wiring & fittings | Moisture-proof installation to code. Indoor: 4mm² copper inlet, 1×20A breaker, 1×3-hole AC outlet, 2.5mm² outlet wiring, 1×5-hole switched outlet, 1×5-hole outlet, 1×LED light. | ||||
| Security Door | Premium security door (warm white) | 970×1970 mm | ||||
| Windows | Single-glazed thickened UPVC sliding window (white) | 925×930 | ||||
| Performance | Roof load | 1.0 kN/m² | ||||
| Floor load | 4.2 kN/m² | |||||
| Side wall pressure | 0.5 kN/m² | |||||
| Fire rating | Class A | |||||
| Seismic rating | Grade 8 | |||||
| Wind resistance | Grade 10 | |||||
| Service life | 10 years |
